Core OS Cluster

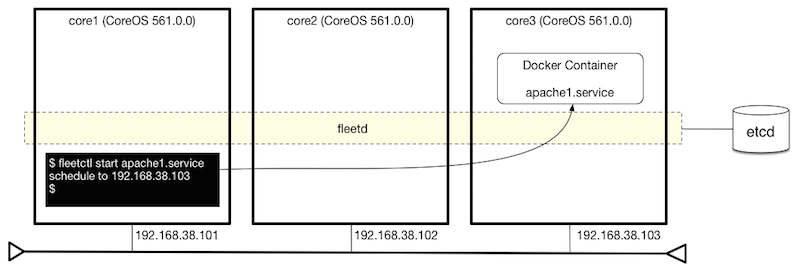

fleet 概要


flannel 概要


etcd 概要


クラスタマシンの準備

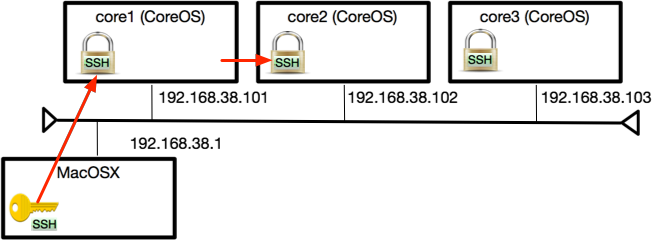

クラスタへのアクセス (ssh-agent)


etcd

etcdコマンドの起動オプション

optionsummarydefault value
-peer-addr=$addr:$portetcd間通信に利用するアドレスとポート127.0.0.1:7001
-addr=$addr:$portetcdとクライアント間の通信に利用するアドレスとポート127.0.0.1:4001
-data-dir=$dirデータ格納ディレクトリカレントディレクトリ
-name=$nameノード名UUID
-discovery=$urlクラスタ内のノードの情報を格納するKVS http://192.168.38.1:4001/v2/keys/discovery/012345-
[~]$ brew install etcd etcdctl jq
[~]$ etcd -peer-addr=192.168.38.1:7001 -addr=192.168.38.1:4001 -data-dir=etcd/node00 -name=node00
[etcd] Jan 27 01:37:21.794 INFO      | node00 is starting a new cluster
[etcd] Jan 27 01:37:21.796 INFO      | etcd server [name node00, listen on :4001, advertised url http://192.168.38.1:4001]
[etcd] Jan 27 01:37:21.796 INFO      | peer server [name node00, listen on :7001, advertised url http://192.168.38.1:7001]
[etcd] Jan 27 01:37:21.796 INFO      | node00 starting in peer mode
[etcd] Jan 27 01:37:21.796 INFO      | node00: state changed from 'initialized' to 'follower'.
[etcd] Jan 27 01:37:21.796 INFO      | node00: state changed from 'follower' to 'leader'.
[etcd] Jan 27 01:37:21.796 INFO      | node00: leader changed from '' to 'node00'.

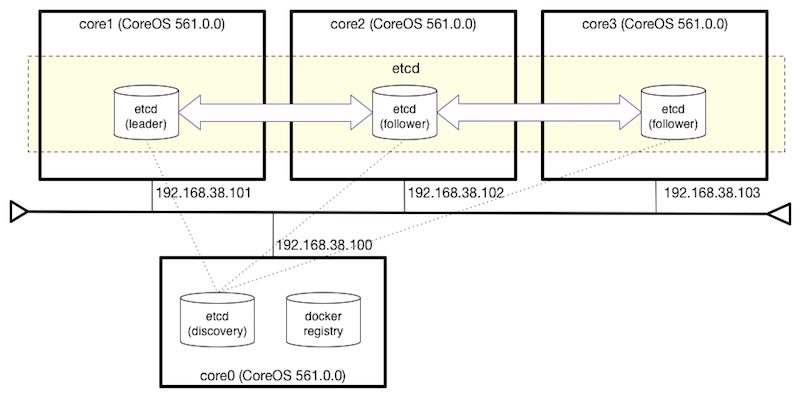

coreos0 (discovery)


coreos1〜3 (cluster)

クラスタの状態を確認

$ curl -L http://192.168.38.101:4001/v2/machines
http://192.168.38.101:4001, http://192.168.38.102:4001, http://192.168.38.103:4001

$ curl -s http://192.168.38.101:4001/v2/keys/_etcd/machines | jq .
{
  "action": "get",
  "node": {
    "key": "/_etcd/machines",
    "dir": true,
    "nodes": [
      {
        "key": "/_etcd/machines/node01",
        "value": "etcd=http%3A%2F%2F192.168.38.101%3A4001&raft=http%3A%2F%2F192.168.38.101%3A7001",
        "modifiedIndex": 1,
        "createdIndex": 1
      },
      {
        "key": "/_etcd/machines/node02",
        "value": "etcd=http%3A%2F%2F192.168.38.102%3A4001&raft=http%3A%2F%2F192.168.38.102%3A7001",
        "modifiedIndex": 134,
        "createdIndex": 134
      },
      {
        "key": "/_etcd/machines/node03",
        "value": "etcd=http%3A%2F%2F192.168.38.103%3A4001&raft=http%3A%2F%2F192.168.38.103%3A7001",
        "modifiedIndex": 194,
        "createdIndex": 194
      }
    ],
    "modifiedIndex": 1,
    "createdIndex": 1
  }
}

良いんじゃないでしょうか。coreos1 に Hello をセットして coreos2,3 から取り出せるか

$ curl -X PUT http://192.168.38.101:4001/v2/keys/message -d value="HELLO"
{"action":"set","node":{"key":"/message","value":"HELLO","modifiedIndex":703,"createdIndex":703}}

$ curl -X GET http://192.168.38.102:4001/v2/keys/message
{"action":"get","node":{"key":"/message","value":"HELLO","modifiedIndex":703,"createdIndex":703}}

$ curl -X GET http://192.168.38.103:4001/v2/keys/message
{"action":"get","node":{"key":"/message","value":"HELLO","modifiedIndex":703,"createdIndex":703}}

こんなところで良いんじゃないでしょうか。

etcd 操作コマンド

flannel

https://github.com/coreos/flannel

etcd に flannel ネットワークの設定を書き込む

core@core1 ~ $ etcdctl rm /coreos.com/network/ --recursive
core@core1 ~ $ etcdctl mk /coreos.com/network/config '{"Network":"11.0.0.0/16"}'
core@core1 ~ $ etcdctl get /coreos.com/network/config
{"Network":"11.0.0.0/16"}

flannelの設定が終わったあとの etcd

ビルド

core@core1 ~ $ sudo -s
core1 core # mkdir /opt
core1 core # cd /opt/
core1 opt # git clone https://github.com/coreos/flannel.git
core1 opt # cd flannel/
core1 flannel # sudo docker run -v `pwd`:/opt/flannel -i -t google/golang /bin/bash -c "cd /opt/flannel && ./build"
core1 flannel # cd ..
core1 opt # mkdir bin
core1 opt # cd bin
core1 bin # ln -s ../flannel/bin/flanneld flanneld
core1 bin # exit
exit

確認

core@localhost ~ $ /opt/bin/flanneld -version
0.3.0+git

Core OS 633 には、/usr/lib/systemd/system/flanneld.service が入っている。この中で起動しているのが /opt/bin/flanneld 。そのうちビルドしなくてもいいようになるのでしょう

/usr/share/oem/cloud-config.yml に flanneld の起動設定を追記

#cloud-config

stname: coreos1

coreos:
  etcd:
    name: node01
    discovery: http://192.168.38.100:4001/v2/keys/discovery/012345
    addr: 192.168.38.101:4001
    peer-addr: 192.168.38.101:7001
  units:
    - name: etcd.service
      command: start
    - name: fleet.service
      command: start
    - name: flanneld.service
      command: start

ssh_authorized_keys:
  - ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA6NF8iallvQVp22WDkTkyrtvp9eWW6A8YVr+kz4TjGYe7gHzIw+niNltGEFHzD8+v1I2YJ6oXevct1YeS0o9HZyN1Q9qgCgzUFtdOKLv6IedplqoPkcmF0aYet2PkEDo3MlTBckFXPITAMzF8dJSIFo9D8HfdOV0IAdx4O7PtixWKn5y2hMNG0zQPyUecp4pzC6kivAIhyfHilFR61RGL+GPXQ2MWZWFYbAGjyiYJnAmCP3NOTd0jMZEnDkbUvxhMmBYSdETk1rRgm+R4LOzFUGaHqHDLKLX+FIPKcF96hrucXzcWyLbIbEgE98OHlnVYCzRdK8jlqm8tehUc9c9WhQ== vagrant insecure public key

起動してみる

core@localhost ~ $ sudo coreos-cloudinit -from-file=/usr/share/oem/cloud-config.yml
Checking availability of "local-file"
Fetching user-data from datasource of type "local-file"
line 3: warning: unrecognized key "stname"
Fetching meta-data from datasource of type "local-file"
2015/04/01 14:18:37 Parsing user-data as cloud-config
Merging cloud-config from meta-data and user-data
2015/04/01 14:18:37 Authorized SSH keys for core user
2015/04/01 14:18:37 Writing drop-in unit "20-cloudinit.conf" to filesystem
2015/04/01 14:18:37 Writing file to "/run/systemd/system/etcd.service.d/20-cloudinit.conf"
2015/04/01 14:18:37 Wrote file to "/run/systemd/system/etcd.service.d/20-cloudinit.conf"
2015/04/01 14:18:37 Wrote drop-in unit "20-cloudinit.conf"
2015/04/01 14:18:37 Ensuring runtime unit file "etcd.service" is unmasked
2015/04/01 14:18:37 Ensuring runtime unit file "fleet.service" is unmasked
2015/04/01 14:18:37 Ensuring runtime unit file "locksmithd.service" is unmasked
2015/04/01 14:18:37 Calling unit command "start" on "etcd.service"'
2015/04/01 14:18:37 Result of "start" on "etcd.service": done
2015/04/01 14:18:37 Calling unit command "start" on "fleet.service"'
2015/04/01 14:18:37 Result of "start" on "fleet.service": done
2015/04/01 14:18:37 Calling unit command "start" on "flanneld.service"'
2015/04/01 14:18:37 Result of "start" on "flanneld.service": done

core@localhost ~ $ sudo systemctl status flanneld.service
● flanneld.service - Network fabric for containers
   Loaded: loaded (/usr/lib64/systemd/system/flanneld.service; static; vendor preset: disabled)
   Active: active (running) since Wed 2015-04-01 14:11:56 UTC; 7min ago
     Docs: https://github.com/coreos/flannel
 Main PID: 742 (sdnotify-proxy)
   CGroup: /system.slice/flanneld.service
           ├─742 /usr/libexec/sdnotify-proxy /run/flannel/sd.sock /usr/bin/docker run --net=host --privileged=true --rm --volume...
           └─744 /usr/bin/docker run --net=host --privileged=true --rm --volume=/run/flannel:/run/flannel --env=NOTIFY_SOCKET=/r...

Apr 01 14:18:58 localhost sdnotify-proxy[742]: I0401 14:18:58.918646 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:58 localhost sdnotify-proxy[742]: I0401 14:18:58.969141 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.019231 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.068477 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.119422 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.169538 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.219166 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.269324 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.320882 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Apr 01 14:18:59 localhost sdnotify-proxy[742]: I0401 14:18:59.365672 00001 subnet.go:447] Lease renewed, new expiration: 2...00 UTC
Hint: Some lines were ellipsized, use -l to show in full.
core@localhost ~ $

/usr/lib/systemd/system/flanneld.service を一応見ておく

[Unit]
Description=Network fabric for containers
Documentation=https://github.com/coreos/flannel
Wants=etcd.service
Requires=early-docker.service
After=etcd.service early-docker.service
Before=early-docker.target

[Service]
Type=notify
Restart=always
RestartSec=5
Environment="TMPDIR=/var/tmp/"
Environment="DOCKER_HOST=unix:///var/run/early-docker.sock"
Environment="FLANNEL_VER=0.3.0"
Environment="ETCD_SSL_DIR=/etc/ssl/etcd"
LimitNOFILE=40000
LimitNPROC=1048576
ExecStartPre=/sbin/modprobe ip_tables
ExecStartPre=/usr/bin/mkdir -p /run/flannel
ExecStartPre=/usr/bin/mkdir -p ${ETCD_SSL_DIR}
ExecStartPre=/usr/bin/touch /run/flannel/options.env

ExecStart=/usr/libexec/sdnotify-proxy /run/flannel/sd.sock \
  /usr/bin/docker run --net=host --privileged=true --rm \
  --volume=/run/flannel:/run/flannel \
  --env=NOTIFY_SOCKET=/run/flannel/sd.sock \
  --env-file=/run/flannel/options.env \
  --volume=${ETCD_SSL_DIR}:/etc/ssl/etcd:ro \
  quay.io/coreos/flannel:${FLANNEL_VER} /opt/bin/flanneld --ip-masq=true

# Update docker options
ExecStartPost=/usr/bin/docker run --net=host --rm -v /run:/run \
  quay.io/coreos/flannel:${FLANNEL_VER} \
  /opt/bin/mk-docker-opts.sh -d /run/flannel_docker_opts.env -i

よく分からんが、etcd を参照しつつ flanneld を起動し、flanneld のネットワーク設定を元に docker コンテナを再起動しているようだ

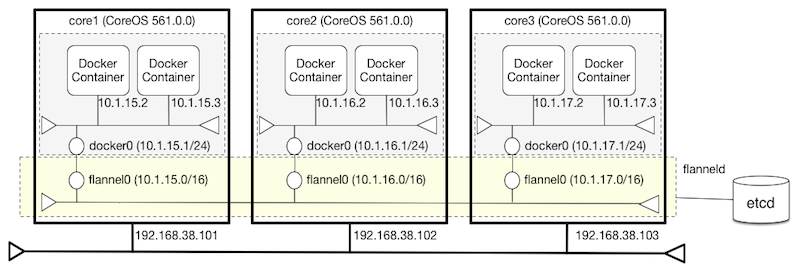

flannel ネットワーク

core@localhost ~ $ ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens192: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:16:dd:7e brd ff:ff:ff:ff:ff:ff
    inet 192.168.38.101/24 brd 192.168.38.255 scope global dynamic ens192
       valid_lft 257sec preferred_lft 257sec
    inet6 fe80::20c:29ff:fe16:dd7e/64 scope link
       valid_lft forever preferred_lft forever
4: flannel0: <POINTOPOINT,UP,LOWER_UP> mtu 1472 qdisc fq_codel state UNKNOWN group default qlen 500
    link/none
    inet 11.0.46.0/16 scope global flannel0
       valid_lft forever preferred_lft forever
5: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1472 qdisc noqueue state DOWN group default
    link/ether 56:84:7a:fe:97:99 brd ff:ff:ff:ff:ff:ff
    inet 11.0.46.1/24 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::5484:7aff:fefe:9799/64 scope link
       valid_lft forever preferred_lft forever

Docker コンテナを起動してみる

core@localhost ~ $ sudo docker run -ti ubuntu /bin/bash

root@d19c748f5d56:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
8: eth0: <BROADCAST,UP,LOWER_UP> mtu 1472 qdisc noqueue state UP group default
    link/ether 02:42:0b:00:2e:03 brd ff:ff:ff:ff:ff:ff
    inet 11.0.46.3/24 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:bff:fe00:2e03/64 scope link
       valid_lft forever preferred_lft forever

Core2,Core3 ノードにも同じ設定をする

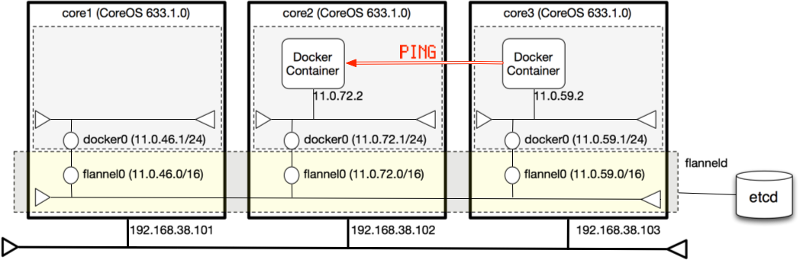

Core3 で起動した ubuntu コンテナと Core2 で起動した ubuntu コンテナが通信できるか試す

core@coreos3 ~ $ sudo docker run -ti ubuntu /bin/bash

root@cf7be88d257a:/# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
5: eth0: <BROADCAST,UP,LOWER_UP> mtu 1472 qdisc noqueue state UP group default
    link/ether 02:42:0b:00:3b:02 brd ff:ff:ff:ff:ff:ff
    inet 11.0.59.2/24 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:bff:fe00:3b02/64 scope link
       valid_lft forever preferred_lft forever

root@cf7be88d257a:/# ping 11.0.72.2
PING 11.0.72.2 (11.0.72.2) 56(84) bytes of data.
64 bytes from 11.0.72.2: icmp_seq=1 ttl=60 time=0.802 ms
64 bytes from 11.0.72.2: icmp_seq=2 ttl=60 time=0.601 ms
64 bytes from 11.0.72.2: icmp_seq=3 ttl=60 time=0.516 ms
64 bytes from 11.0.72.2: icmp_seq=4 ttl=60 time=0.484 ms
64 bytes from 11.0.72.2: icmp_seq=5 ttl=60 time=0.517 ms
^C
--- 11.0.72.2 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4001ms
rtt min/avg/max/mdev = 0.484/0.584/0.802/0.115 ms
root@cf7be88d257a:/#

ping は通った

flannelの設定が終わったあとの etcd

core@coreos3 ~ $ etcdctl ls /coreos.com/network/
/coreos.com/network/config
/coreos.com/network/subnets

core@coreos3 ~ $ etcdctl get /coreos.com/network/config
{"Network":"11.0.0.0/16"}

core@coreos3 ~ $ etcdctl ls /coreos.com/network/subnets
/coreos.com/network/subnets/11.0.46.0-24
/coreos.com/network/subnets/11.0.72.0-24
/coreos.com/network/subnets/11.0.59.0-24

core@coreos3 ~ $ etcdctl get /coreos.com/network/subnets/11.0.46.0-24
{"PublicIP":"192.168.38.101"}

core@coreos3 ~ $ etcdctl get /coreos.com/network/subnets/11.0.72.0-24
{"PublicIP":"192.168.38.102"}

core@coreos3 ~ $ etcdctl get /coreos.com/network/subnets/11.0.59.0-24
{"PublicIP":"192.168.38.103"}

ふむふむさういうことか
etcd の分散データベースで、各マシンの docker のサブネットと Public IP の対応が管理されているのね

fleet

/usr/share/oem/cloud-config.yml に fleet の起動設定を記入

#cloud-config

stname: coreos1

coreos:
  update:
    group: alpha
    reboot-strategy: best-effort
  etcd:
    name: node01
    discovery: http://192.168.38.100:4001/v2/keys/discovery/012345
    addr: 192.168.38.101:4001
    peer-addr: 192.168.38.101:7001
  units:
    - name: etcd.service
      command: start
    - name: fleet.service
      command: start
    - name: flanneld.service
      command: start

ssh_authorized_keys:
  - ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA6NF8iallvQVp22WDkTkyrtvp9eWW6A8YVr+kz4TjGYe7gHzIw+niNltGEFHzD8+v1I2YJ6oXevct1YeS0o9HZyN1Q9qgCgzUFtdOKLv6IedplqoPkcmF0aYet2PkEDo3MlTBckFXPITAMzF8dJSIFo9D8HfdOV0IAdx4O7PtixWKn5y2hMNG0zQPyUecp4pzC6kivAIhyfHilFR61RGL+GPXQ2MWZWFYbAGjyiYJnAmCP3NOTd0jMZEnDkbUvxhMmBYSdETk1rRgm+R4LOzFUGaHqHDLKLX+FIPKcF96hrucXzcWyLbIbEgE98OHlnVYCzRdK8jlqm8tehUc9c9WhQ== vagrant insecure public key

起動してみる

core@localhost ~ $ sudo coreos-cloudinit -from-file=/usr/share/oem/cloud-config.yml

クラスタの状態を確認

[~]$ ssh core@coreos1
Last login: Sat Apr  4 06:37:15 2015 from 192.168.38.1
CoreOS alpha (640.0.0)
core@localhost ~ $ fleetctl list-machines
MACHINE		IP		METADATA
579c08c5...	192.168.38.102	-
b2be44bb...	192.168.38.103	-
edf014cc...	192.168.38.101	-
core@localhost ~ $

いいんじゃないでしょうか

サンプルサービス (docker-apache.service)

[Unit]
Description=Apache Official Container(https://registry.hub.docker.com/_/httpd/)
After=docker.service
Requires=docker.service

[Service]
TimeoutStartSec=0
ExecStartPre=-/usr/bin/docker kill apache
ExecStartPre=-/usr/bin/docker rm apache
ExecStartPre=/usr/bin/docker pull httpd:2.4
ExecStart=/usr/bin/docker run --name apache -p 10080:80 -i httpd:2.4
ExecStop=/usr/bin/docker stop apache

[Install]
WantedBy=multi-user.target

[X-Fleet]
X-Conflicts=docker-apache.service

サービスの登録

fleet クラスタに、サービス定義を登録する

core@localhost ~ $ fleetctl submit docker-apache.service

core@localhost ~ $ fleetctl list-unit-files
UNIT			HASH	DSTATE		STATE		TARGET
docker-apache.service	11e0200	inactive	inactive	-

core@localhost ~ $ fleetctl cat docker-apache.service
[Unit]
Description=Apache Official Container(https://registry.hub.docker.com/_/httpd/)
After=docker.service
Requires=docker.service

[Service]
TimeoutStartSec=0
ExecStartPre=-/usr/bin/docker kill apache
ExecStartPre=-/usr/bin/docker rm apache
ExecStartPre=/usr/bin/docker pull httpd:2.4
ExecStart=/usr/bin/docker run --name apache -p 10080:80 -i httpd:2.4
ExecStop=/usr/bin/docker stop apache

[Install]
WantedBy=multi-user.target

[X-Fleet]
X-Conflicts=docker-apache.service

サービスのスケジューリング

物理マシンに、サービスを登録する

core@localhost ~ $ fleetctl load docker-apache.service
Unit docker-apache.service loaded on 579c08c5.../192.168.38.102

core@localhost ~ $ fleetctl list-unit-files
UNIT			HASH	DSTATE	STATE	TARGET
docker-apache.service	11e0200	loaded	loaded	579c08c5.../192.168.38.102

サービスの起動

物理マシンで、サービスを起動する

core@localhost ~ $ fleetctl start docker-apache
Unit docker-apache.service launched on 579c08c5.../192.168.38.102

サービスの状態確認

core@localhost ~ $ fleetctl list-units
UNIT			MACHINE				ACTIVE	SUB
docker-apache.service	579c08c5.../192.168.38.102	active	running

よかよか

core@localhost ~ $ fleetctl status docker-apache
● docker-apache.service - Apache Official Container(https://registry.hub.docker.com/_/httpd/)
   Loaded: loaded (/run/fleet/units/docker-apache.service; linked-runtime; vendor preset: disabled)
   Active: active (running) since Mon 2015-06-01 13:54:13 UTC; 11s ago
  Process: 738 ExecStartPre=/usr/bin/docker pull httpd:2.4 (code=exited, status=0/SUCCESS)
  Process: 732 ExecStartPre=/usr/bin/docker rm apache (code=exited, status=1/FAILURE)
  Process: 671 ExecStartPre=/usr/bin/docker kill apache (code=exited, status=1/FAILURE)
 Main PID: 757 (docker)
   Memory: 1.5M
   CGroup: /system.slice/docker-apache.service
           └─757 /usr/bin/docker run --name apache -p 10080:80 -i httpd:2.4

Jun 01 13:54:13 coreos2 docker[738]: ec21802b3801: Already exists
Jun 01 13:54:13 coreos2 docker[738]: 58d2b0d4632c: Already exists
Jun 01 13:54:13 coreos2 docker[738]: 58d2b0d4632c: Already exists
Jun 01 13:54:13 coreos2 docker[738]: Digest: sha256:e1c78fd635d30cd2185b16e69244c78aefd8ed7154f4fb4d97000c7e4fb4e3b1
Jun 01 13:54:13 coreos2 docker[738]: Status: Image is up to date for httpd:2.4
Jun 01 13:54:13 coreos2 systemd[1]: Started Apache Official Container(https://registry.hub.docker.com/_/httpd/).
Jun 01 13:54:13 coreos2 docker[757]: AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 11.0.43.2. Set the 'ServerName' directive globally to suppress this message
Jun 01 13:54:13 coreos2 docker[757]: AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 11.0.43.2. Set the 'ServerName' directive globally to suppress this message
Jun 01 13:54:13 coreos2 docker[757]: [Mon Jun 01 13:54:13.317050 2015] [mpm_event:notice] [pid 1:tid 140234936838016] AH00489: Apache/2.4.12 (Unix) configured -- resuming normal operations
Jun 01 13:54:13 coreos2 docker[757]: [Mon Jun 01 13:54:13.317993 2015] [core:notice] [pid 1:tid 140234936838016] AH00094: Command line: 'httpd -D FOREGROUND'

stdout を見たい場合には journal。tail -f のようにしたい場合には fleetctl journal -f apache でもいい

core@localhost ~ $ fleetctl journal -f docker-apache
-- Logs begin at Sun 2015-02-08 13:14:59 UTC. --
Jun 01 13:54:13 coreos2 docker[738]: ec21802b3801: Already exists
Jun 01 13:54:13 coreos2 docker[738]: 58d2b0d4632c: Already exists
Jun 01 13:54:13 coreos2 docker[738]: 58d2b0d4632c: Already exists
Jun 01 13:54:13 coreos2 docker[738]: Digest: sha256:e1c78fd635d30cd2185b16e69244c78aefd8ed7154f4fb4d97000c7e4fb4e3b1
Jun 01 13:54:13 coreos2 docker[738]: Status: Image is up to date for httpd:2.4
Jun 01 13:54:13 coreos2 systemd[1]: Started Apache Official Container(https://registry.hub.docker.com/_/httpd/).
Jun 01 13:54:13 coreos2 docker[757]: AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 11.0.43.2. Set the 'ServerName' directive globally to suppress this message
Jun 01 13:54:13 coreos2 docker[757]: AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using 11.0.43.2. Set the 'ServerName' directive globally to suppress this message
Jun 01 13:54:13 coreos2 docker[757]: [Mon Jun 01 13:54:13.317050 2015] [mpm_event:notice] [pid 1:tid 140234936838016] AH00489: Apache/2.4.12 (Unix) configured -- resuming normal operations
Jun 01 13:54:13 coreos2 docker[757]: [Mon Jun 01 13:54:13.317993 2015] [core:notice] [pid 1:tid 140234936838016] AH00094: Command line: 'httpd -D FOREGROUND'

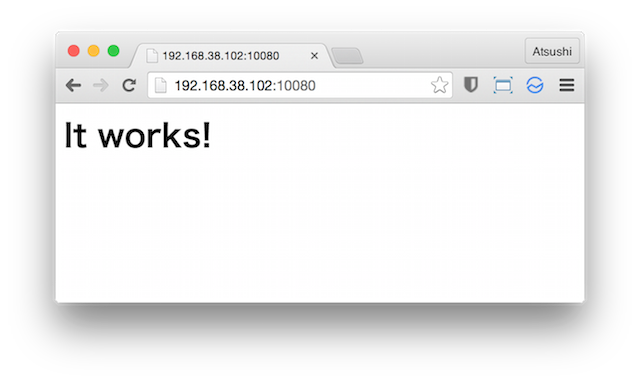

ブラウザからアクセスしてみる


停止

core@localhost ~ $ fleetctl stop docker-apache
Unit docker-apache.service loaded on 579c08c5.../192.168.38.102

core@localhost ~ $ fleetctl list-units
UNIT			MACHINE				ACTIVE		SUB
docker-apache.service	579c08c5.../192.168.38.102	inactive	dead

物理マシンから引き離す

core@localhost ~ $ fleetctl unload docker-apache
Unit docker-apache.service inactive

core@localhost ~ $ fleetctl list-units
UNIT	MACHINE	ACTIVE	SUB

クラスタへのエントリーから削除

core@localhost ~ $ fleetctl destroy docker-apache
Destroyed docker-apache.service

core@localhost ~ $ fleetctl list-unit-files
UNIT	HASH	DSTATE	STATE	TARGET

テンプレート化

サービスに処理を依頼する側は、どうやってサービスのIPアドレスとポート番号を知るのか?


Docker


添付ファイル: fileworks.png 2220件 [詳細] filessh.png 2176件 [詳細] fileflannel2.png 2439件 [詳細] fileetcd.png 2631件 [詳細] filefleet.png 2362件 [詳細] fileflannel.png 2478件 [詳細]

トップ   編集 凍結 差分 バックアップ 添付 複製 名前変更 リロード   新規 一覧 単語検索 最終更新   ヘルプ   最終更新のRSS   sitemap
Last-modified: 2015-06-02 (火) 23:36:00 (3475d)
Short-URL: http://at-sushi.com/pukiwiki/index.php?cmd=s&k=5147c4f4ba
ISBN10
ISBN13
9784061426061
