D3.js とは?

D3.js による DOM 操作

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-2-SELECT.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-2-SELECT.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>D3 Page Template</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <script type="text/javascript" src="https://code.jquery.com/jquery-2.0.2.js" charset="utf-8"></script>
    </head>
    <body>
        <ul id="list1">
            <li>L1</li>
            <li>L2</li>
        </ul>

        <ul id="list2">
            <li>A</li>
            <li>B</li>
            <li>C</li>
            <li>D</li>
            <li>E</li>
            <li>F</li>
            <li>G</li>
            <li>H</li>
        </ul>

        <button>D3.jsはじめの一歩</button>

        <script type="text/javascript">
            var dataset = [5, 10, 15, 20, 25];

            $('button')
                .attr('disabled', false)
                .on('click', function() {
                    applyData('#list1', dataset);
                    applyData('#list2', dataset);
                    $(this).attr('disabled', true);
                });

            function applyData(selector) {
                var update = d3.select(selector).selectAll("li").data(dataset);
                var enter  = update.enter();
                var exit   = update.exit();

                // 既存の <li>
                update
                    .text( function(d,i) {
                        return $(this).html() + "→" + d;
                    } )
                    .style("color", "gray")
                    .attr("type", "1");

                // 追加された <li>
                enter
                    .append("li")
                    .text( function(d) { return d; } )
                    .style("color", "red");

                // 余った <li>
                exit.remove();
            }
        </script>
    </body>
</html>

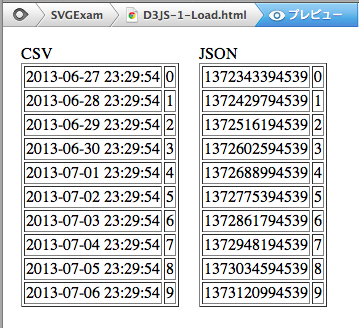

D3.js によるデータの ajax 取得

D3.js で SVG を書く (1)

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-3-SVG1.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-3-SVG1.html

<!DOCTYPE html>
<html lang="ja">
<head>
    <meta charset="utf-8">
    <title>SVG1</title>
    <style>
        .mycircle {
            fill: yellow;
            stroke: orange;
            stroke-width: 3px;
        }
    </style>
</head>
<body>
    <script src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
    <script>
        var dataset = [11, 25, 15, 20, 4, 8 , 16, 32];

        var w = 400;
        var h = 100;

        var svg = d3.select("body").append("svg").attr({width:w, height:h});

        var circles = svg.selectAll("circle")
            .data(dataset)
            .enter()
            .append("circle");

        circles
            .classed("mycircle", true)
            .attr("cx", function(d, i){
                return (i * 50) + 25;
            })
            .attr("cy", function(d, i){
                return h/2 - d;
            })
            .attr("r", function(d, i){
                return d/4;
            });

        var labels = svg.selectAll("text")
            .data(dataset)
            .enter()
            .append("text");

        labels
            .attr("x", function(d, i){
                return (i * 50) + 25;
            })
            .attr("y", function(d, i){
                return h/2 - d + 16;
            })
            .text(function(d, i){
                return d;
            });

        svg.append("line")
            .attr("x1", 0)
            .attr("y1", function(d, i){
                return h/2;
            })
            .attr("x2" , function(d, i) {
                return w;
            })
            .attr("y2", function(d, i){
                return h/2;
            })
            .attr("stroke", "black");

    </script>
</body>
</html>

D3.js で SVG を書く (2)

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-4-SVG2.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-4-SVG2.html

<!DOCTYPE html>
<html lang="ja">
<head>
    <meta charset="utf-8">
    <title>SVG2</title>
    <style>
        .myrect {
            stroke : black;
            stroke-width : 1;
        }
    </style>
</head>
<body>
    <script src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
    <script>
        var dataset = [11, 25, 15, 20, 4, 8, 16, 32];

        var w = 400;
        var h = 100;
        var margin = 20;

        var svg = d3.select("body").append("svg").attr({width:w, height:h});

        var rect = svg.selectAll("rect")
            .data(dataset)
            .enter()
            .append("rect");

        rect
            .classed("myrect", true)
            .attr({
                "x" : function(d, i){
                    return (i * 50);
                },
                "y" : function(d, i){
                    return h - margin - d;
                },
                "height" : function(d, i){
                    return d;
                },
                "width" : 45,
                "fill" : function(d, i) {
                    return "rgb(" + (d*10) + ",255,255)";
                }
            });

        var labels = svg.selectAll("text")
            .data(dataset)
            .enter()
            .append("text");

        labels
            .attr({
                "x" : function(d, i){
                    return (i * 50);
                },
                "y" : function(d, i){
                    return h - margin - d;
                }})
            .text(function(d, i){
                return d;
            });

        svg.append("line")
            .attr({
                "x1" : 0,
                "y1" : function(){
                    return h - margin;
                },
                "x2" : function() {
                    return w;
                },
                "y2" : function(){
                    return h - margin;
                },
                "stroke" : "black"});

    </script>
</body>
</html>

Scale (1) データ値→画面上のpx 変換

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-5-Scale.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-5-Scale.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Scale</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
    </head>
    <body>
        <script type="text/javascript">

            // N225
            var dataset = [
                {"date":1372078863613,"value":13062},
                {"date":1372165263613,"value":12969},
                {"date":1372251663613,"value":12834},
                {"date":1372338063613,"value":13213},
                {"date":1372424463613,"value":13677},
                {"date":1372683663613,"value":13852}
            ];

            // min value
            var min = d3.min(dataset, function(d) {
                return d.value;
            });

            // max value
            var max = d3.max(dataset, function(d) {
                return d.value;
            });

            // margin
            var margin = 1000;

            var w = 400;
            var h = 100;

             // Input Data is (12834-1000)yen to (13852+1000)yen
             // Output is 20px to 400px
            var scale = d3.scale.linear()
                .domain([min - margin, max + margin])
                .range([20, h]);

            var svg = d3.select("body").append("svg").attr({width:w, height:h});

            svg.selectAll("rect")
                .data(dataset)
                .enter()
                .append("rect")
                .attr({
                    "x" : function(d, i){
                        return (i * 60);
                    },
                    "y" : function(d, i){
                        return h - scale(d.value);
                    },
                    "height" : function(d, i){
                        return scale(d.value);
                    },
                    "width" : 55,
                    "fill" : "blue"
                });

           svg.selectAll("text")
                .data(dataset)
                .enter()
                .append("text")
                .attr({
                    "x" : function(d, i){
                        return (i * 60);
                    },
                    "y" : function(d, i){
                        return h - scale(d.value) - 5;
                    }})
                .text(function(d, i){
                    return d.value;
                });
        </script>
    </body>
</html>

Scale (2) (date,value)→画面上のpx 変換

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-6-Scale2.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-6-Scale2.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Scale2</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
    </head>
    <body>
        <script type="text/javascript">
            var WEEKDAY = ['日','月','火','水','木','金','土'];
            var w = 400;
            var h = 100;

            // N225
            var dataset = [
                {"date":1372078863613,"value":13062},
                {"date":1372165263613,"value":12969},
                {"date":1372251663613,"value":12834},
                {"date":1372338063613,"value":13213},
                {"date":1372424463613,"value":13677},
                {"date":1372683663613,"value":13852}
            ];

            // min value
            var minX = d3.min(dataset, function(d) {
                return d.date;
            });

            // max value
            var maxX = d3.max(dataset, function(d) {
                return d.date;
            });

            var scaleX = d3.scale.linear()
                .domain([minX, maxX])
                .nice()             // input domain を適当にマージンを取って拡大
                .rangeRound([0, w]) // output range (画面上のピクセル位置) を整数に丸める
                .clamp(true);       // (val > max) ? (max) : (val < min ? min : val)

            // min value
            var minY = d3.min(dataset, function(d) {
                return d.value;
            });

            // max value
            var maxY = d3.max(dataset, function(d) {
                return d.value;
            });

            // margin
            var marginY = 1000;

            var scaleY = d3.scale.linear()
                .domain([minY - marginY, maxY + marginY])
                .nice()
                .rangeRound([h, 0]) // Technique! minY は (x, 100)にプロット、maxY は (x,0) にプロット
                .clamp(true);

            var svg = d3.select("body").append("svg").attr({width:w, height:h});

            svg.selectAll("circle")
                .data(dataset)
                .enter()
                .append("circle")
                .attr("cx", function(d){
                    return scaleX(d.date);
                })
                .attr("cy", function(d){
                    return scaleY(d.value);
                })
                .attr("r", "2");

            svg.append("g").selectAll("text")
                .data(dataset)
                .enter()
                .append("text")
                .attr({
                    "font-size" : 10,
                    "text-anchor" : function(d, i){
                        return (dataset.length == i+1) ? "end" : "start";
                    },
                    "x" : function(d){
                        return scaleX(d.date);
                    },
                    "y" : function(d){
                        return scaleY(d.value) + 10;
                    }})
                .text(function(d){
                    var date = new Date();
                    date.setTime(d.date);
                    return (date.getMonth() + 1) + "-" + date.getDate() + "(" + WEEKDAY[date.getDay()] + ")";
                });

            svg.append("g").selectAll("text")
                .data(dataset)
                .enter()
                .append("text")
                .attr({
                    "font-size" : 10,
                    "text-anchor" : function(d, i){
                        return (dataset.length == i+1) ? "end" : "start";
                    },
                    "x" : function(d){
                        return scaleX(d.date);
                    },
                    "y" : function(d){
                        return scaleY(d.value) + 20;
                    }})
                .text(function(d){
                    return d.value;
                });

        </script>
    </body>
</html>

Scale (3) linear 以外の Scale

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-7-Scale3.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-7-Scale3.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Scale3</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
    </head>
    <body>
        <script type="text/javascript">
            var w = 300;
            var h = 200;
            var margin = {x:20, y:20};

            var dataset = [0.1,0.2,0.4,1,2,4,10,20,40,100,200,400,1000];

            var scaleX = d3.scale.linear()
                .domain([1, dataset.length])
                .range([0 + margin.x ,w - margin.x])
                .nice();

            var linearY = d3.scale.linear()
                    .domain([d3.min(dataset), d3.max(dataset)])
                    .range([h - margin.y , 0 + margin.y])
                    .nice();

            var sqrtY = d3.scale.sqrt()
                    .domain([d3.min(dataset), d3.max(dataset)])
                    .range([h - margin.y , 0 + margin.y])
                    .nice();

            var logY = d3.scale.log()
                    .domain([d3.min(dataset), d3.max(dataset)])
                    .range([h - margin.y , 0 + margin.y])
                    .nice();

            var powY = d3.scale.pow().exponent(0.5)
                    .domain([d3.min(dataset), d3.max(dataset)])
                    .range([h - margin.y , 0 + margin.y])
                    .nice();

            var pow1Y = d3.scale.pow()
                    .domain([d3.min(dataset), d3.max(dataset)])
                    .range([h - margin.y , 0 + margin.y])
                    .nice();

            var pow2Y = d3.scale.pow().exponent(2)
                    .domain([d3.min(dataset), d3.max(dataset)])
                    .range([h - margin.y , 0 + margin.y])
                    .nice();

            var quantizeY = d3.scale.quantize()
                    .domain([d3.min(dataset), d3.max(dataset)]) // Quantize's domain is range (D3.js use 1st and last number)
                    .range([h - margin.y , h/2, 0 + margin.y]); // we can specify ['red','yellow','blue'] also.

            var quantileY = d3.scale.quantile()
                    .domain(dataset)                            // Quantize's domain is discrete values
                    .range([h - margin.y , h/2, 0 + margin.y]); // we can specify ['red','yellow','blue'] also.


            var color = d3.scale.threshold()
                    .domain([1,10,100,1000])
                    .range(['cyan', 'blue','yellowgreen','orange','red'])

            plot("linear scale", scaleX, linearY);
            plot("sqrt scale", scaleX, sqrtY);
            plot("log scale", scaleX, logY);
            plot("pow(0.5) scale (=sqrt)", scaleX, powY);
            plot("pow(1.0) scale (=linear)", scaleX, pow1Y);
            plot("pow(2.0) scale", scaleX, pow2Y);
            plot("quantize scale", scaleX, quantizeY);
            plot("quantile scale", scaleX, quantileY);

            function plot(explanation, scaleX, scaleY) {
                var svg = d3.select("body").append("svg").attr({width:w, height:h}).style("padding","5px");

                svg.append("rect").attr({x:0, y:0, width:w, height:h, stroke:"black", fill:"snow"});

                svg.selectAll("circle")
                    .data(dataset)
                    .enter()
                    .append("circle")
                    .attr("cx", function(d,i){
                        return scaleX(i+1);
                    })
                    .attr("cy", function(d){
                        return scaleY(d);
                    })
                    .attr("r", "4")
                    .attr("fill" , function(d){
                        return color(d);
                    });

                svg.selectAll("text")
                    .data(dataset)
                    .enter()
                    .append("text")
                    .attr({
                        "font-size" : 10,
                        "font-family" : "sans-serif",
                        "text-anchor" : "middle",
                        "x" : function(d,i){
                            return scaleX(i+1);
                        },
                        "y" : function(d,i){
                            return scaleY(d) - 10;
                        }})
                    .text(function(d){
                        return d;
                    });

                svg.append("text")
                    .attr({
                        "font-size" : 15,
                        "text-anchor" : "start",
                        "x" : 15,
                        "y" : 15})
                    .text(explanation);
            }
        </script>
    </body>
</html>

d3.scale.linear()線形
d3.scale.sqrt()平方根
d3.scale.log()対数
d3.scale.pow().exponent(e)べき乗(e 未指定時は e=1 linear() と同じ, e=0.5 で sqrt() と同じ)
d3.scale.quantize()range([a,b,c]) で、データを値で 3 つに分割して a, b, c に変換
d3.scale.quantile()range([a,b,c]) で、データを順番で 3 つに分割して a, b, c に変換
d3.scale.threshold()domain([a,b,c]).range([p,q,r,s]) で、(-∞〜a)→p、(a〜b)→q、(b〜c)→r、(c〜∞)→s

Axis

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-8-Axis.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-8-Axis.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Axis</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
			.axis path,
			.axis line {
				fill: none;
				stroke: black;
				shape-rendering: crispEdges;
			}

			.axis text {
				font-family: sans-serif;
				font-size: 11px;
			}
        </style>
    </head>
    <body>
        <script type="text/javascript">
            var w = 400;
            var h = 200;
            var margin = {x:50, y:20};

            // N225
            var dataset = [
                {"date":1371999600000,"value":13062},
                {"date":1372086000000,"value":12969},
                {"date":1372172400000,"value":12834},
                {"date":1372258800000,"value":13213},
                {"date":1372345200000,"value":13677},
                {"date":1372604400000,"value":13852}
            ];

            // min value
            var minX = d3.min(dataset, function(d) {
                return d.date;
            });

            // max value
            var maxX = d3.max(dataset, function(d) {
                return d.date;
            });

            var scaleX = d3.scale.linear()
                .domain([minX - 86400000, maxX + 86400000])
                .rangeRound([margin.x, w - margin.x])
                .clamp(true);

            var formatX = function(time){
                var formatter = d3.time.format("%b%d");
                return formatter(new Date(time));
            };
            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .ticks(10) // That's only hint, d3.js will overwrite concise number !
                .tickFormat(formatX);

            // min value
            var minY = d3.min(dataset, function(d) {
                return d.value;
            });

            // max value
            var maxY = d3.max(dataset, function(d) {
                return d.value;
            });

            var scaleY = d3.scale.linear()
                .domain([minY - 100, maxY + 100])
                .nice()
                .rangeRound([h - margin.y, margin.y])
                .clamp(true);

            var axisY = d3.svg.axis()
                .scale(scaleY)
                .orient("left")
                .ticks(5);

            var svg = d3.select("body").append("svg").attr({width: w, height: h});

            svg.selectAll("circle")
                .data(dataset)
                .enter()
                .append("circle")
                .attr("cx", function(d){
                    return scaleX(d.date);
                })
                .attr("cy", function(d){
                    return scaleY(d.value);
                })
                .attr("r", "2");

            svg.append("g").selectAll("text")
                .data(dataset)
                .enter()
                .append("text")
                .attr({
                    "font-size" : 10,
                    "x" : function(d){
                        return scaleX(d.date);
                    },
                    "y" : function(d){
                        return scaleY(d.value) + 10;
                    }})
                .text(function(d){
                    return d.value;
                });

            svg.append("g")
                .attr("class", "axis")
                .attr("transform", "translate(0," + (h - margin.y) + ")")
                .call(axisX);

            svg.append("g")
                .attr("class", "axis")
                .attr("transform", "translate(" + margin.x + ",0)")
                .call(axisY);
        </script>
    </body>
</html>

var scaleX = d3.scale.linear()
         .domain([minX - 86400000, maxX + 86400000])
         .rangeRound([margin.x, w - margin.x])
         .clamp(true);

 var formatX = function(time){
          var formatter = d3.time.format("%b%d");
          return formatter(new Date(time));
 };
 var axisX = d3.svg.axis()
         .scale(scaleX)
         .orient("bottom")
         .ticks(10) // That's only hint, d3.js will overwrite concise number !
         .tickFormat(formatX);
svg.append("g")
         .attr("class", "axis")
         .attr("transform", "translate(0," + (h - margin.y) + ")")
         .call(axisX);

D3.js で <path> : 折れ線グラフはどうやんだっけ?

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-9-Line.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-9-Line.html


<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Axis</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
			.axis path,
			.axis line {
				fill: none;
				stroke: black;
				shape-rendering: crispEdges;
			}

			.axis text {
				font-family: sans-serif;
				font-size: 8px;
			}
        </style>
    </head>
    <body>
        <script type="text/javascript">
            var w = 300;
            var h = 150;
            var margin = {x:50, y:20};

            // N225
            var dataset = [
                {"date":1371999600000,"value":13062},
                {"date":1372086000000,"value":12969},
                {"date":1372172400000,"value":12834},
                {"date":1372258800000,"value":13213},
                {"date":1372345200000,"value":13677},
                {"date":1372604400000,"value":13852}
            ];

            // min value
            var minX = d3.min(dataset, function(d) {
                return d.date;
            });

            // max value
            var maxX = d3.max(dataset, function(d) {
                return d.date;
            });

            var scaleX = d3.scale.linear()
                .domain([minX - 86400000, maxX + 86400000])
                .rangeRound([margin.x, w - margin.x])
                .clamp(true);

            var formatX = function(time){
                var formatter = d3.time.format("%b%d");
                return formatter(new Date(time));
            };
            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .ticks(5) // That's only hint, d3.js will overwrite concise number !
                .tickFormat(formatX);

            // min value
            var minY = d3.min(dataset, function(d) {
                return d.value;
            });

            // max value
            var maxY = d3.max(dataset, function(d) {
                return d.value;
            });

            var scaleY = d3.scale.linear()
                .domain([minY - 100, maxY + 100])
                .nice()
                .rangeRound([h - margin.y, margin.y])
                .clamp(true);

            var axisY = d3.svg.axis()
                .scale(scaleY)
                .orient("left")
                .ticks(5);

            plot("linear");
            plot("step-before");
            plot("step-after");
            plot("basis");
            plot("basis-open");
            plot("basis-closed");
            plot("bundle");
            plot("cardinal");
            plot("cardinal-open");
            plot("cardinal-closed");
            plot("monotone");

            function plot(linetype) {

                var svg = d3.select("body").append("svg").attr({width: w, height: h}).style("padding","5px");

                svg.append("rect").attr({x:0, y:0, width:w, height:h, stroke:"black", fill:"snow"});

                var line = d3.svg.line()
                    .x(function(d) { return scaleX(d.date); })
                    .y(function(d) { return scaleY(d.value); })
                    .interpolate(linetype);

                svg.append("path")
                    .attr("d", line(dataset))
                    .attr("stroke", "blue")
                    .attr("stroke-width", 2)
                    .attr("fill", "none");

                svg.selectAll("circle")
                    .data(dataset)
                    .enter()
                    .append("circle")
                    .attr("cx", function(d){ return scaleX(d.date); })
                    .attr("cy", function(d){ return scaleY(d.value); })
                    .attr("r", "2");

                svg.append("g").selectAll("text")
                    .data(dataset)
                    .enter()
                    .append("text")
                    .attr({
                        "font-size" : 10,
                        "x" : function(d){ return scaleX(d.date); },
                        "y" : function(d){ return scaleY(d.value) + 10; }
                    })
                    .text(function(d){
                        return d.value;
                    });

                svg.append("g")
                    .attr("class", "axis")
                    .attr("transform", "translate(0," + (h - margin.y) + ")")
                    .call(axisX);

                svg.append("g")
                    .attr("class", "axis")
                    .attr("transform", "translate(" + margin.x + ",0)")
                    .call(axisY);

                svg.append("text")
                    .attr({
                        "font-size" : 15,
                        "text-anchor" : "start",
                        "x" : w/2,
                        "y" : 15})
                    .text(linetype);
            }
        </script>
    </body>
</html>

var line = d3.svg.line()
    .x(function(d) { return scaleX(d.date); })
    .y(function(d) { return scaleY(d.value); })
    .interpolate(linetype);

svg.append("path")
    .attr("d", line(dataset))
    .attr("stroke", "blue")
    .attr("stroke-width", 2)
    .attr("fill", "none");

塗りつぶし、目盛線

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-10-Area.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-10-Area.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Axis</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
			.axis path,
			.axis line {
				fill: none;
				stroke: black;
				shape-rendering: crispEdges;
			}

			.axis text {
				font-family: sans-serif;
				font-size: 8px;
			}

			.axis .major line {
				fill: none;
				stroke: cyan;
				stroke-dasharray: 5,5;
				shape-rendering: crispEdges;
			}

			.axis .major text {
				font-family: sans-serif;
				font-size: 12px;
				stroke: yellowgreen;
			}

			.axis .minor {
				fill: none;
				stroke: cyan;
				stroke-dasharray: 5,10;
				shape-rendering: crispEdges;
			}

        </style>
    </head>
    <body>
        <script type="text/javascript">
            var w = 300;
            var h = 150;
            var margin = {x:50, y:20};

            // N225
            var dataset = [
                {"date":1371999600000,"value":13062},
                {"date":1372086000000,"value":12969},
                {"date":1372172400000,"value":12834},
                {"date":1372258800000,"value":13213},
                {"date":1372345200000,"value":13677},
                {"date":1372604400000,"value":13852}
            ];

            // min value
            var minX = d3.min(dataset, function(d) {
                return d.date;
            });

            // max value
            var maxX = d3.max(dataset, function(d) {
                return d.date;
            });

            var scaleX = d3.scale.linear()
                .domain([minX - 86400000, maxX + 86400000])
                .rangeRound([margin.x, w - margin.x])
                .clamp(true);

            var formatX = function(time){
                var formatter = d3.time.format("%b%d");
                return formatter(new Date(time));
            };
            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .ticks(5) // That's only hint, d3.js will overwrite concise number !
                .tickFormat(formatX)
                .tickSubdivide(true)
                .tickSize(-(h - margin.y * 2), -(h - margin.y * 2), 0);

            // min value
            var minY = d3.min(dataset, function(d) {
                return d.value;
            });

            // max value
            var maxY = d3.max(dataset, function(d) {
                return d.value;
            });

            var scaleY = d3.scale.linear()
                .domain([minY - 100, maxY + 100])
                .nice()
                .rangeRound([h - margin.y, margin.y])
                .clamp(true);

            var axisY = d3.svg.axis()
                .scale(scaleY)
                .orient("left")
                .ticks(5)
                .tickSubdivide(true)
                .tickSize(-(w - margin.x * 2), 3, 0);

            plot("linear");
            plot("step-before");
            plot("step-after");
            plot("basis");
            plot("basis-open");
            plot("basis-closed");
            plot("bundle");
            plot("cardinal");
            plot("cardinal-open");
            plot("cardinal-closed");
            plot("monotone");

            function plot(linetype) {

                var svg = d3.select("body").append("svg").attr({width: w, height: h}).style("padding","5px");

                svg.append("rect").attr({x:0, y:0, width:w, height:h, stroke:"black", fill:"snow"});

                var line = d3.svg.line()
                    .x(function(d) { return scaleX(d.date); })
                    .y(function(d) { return scaleY(d.value); })
                    .interpolate(linetype);

                var area = d3.svg.area()
                    .x(function(d) { return scaleX(d.date); })
                    .y0(function(d) { return scaleY(0); })
                    .y1(function(d) { return scaleY(d.value); })
                    .interpolate(linetype);

                svg.append("path")
                    .attr("d", line(dataset))
                    .attr("stroke", "blue")
                    .attr("stroke-width", 2)
                    .attr("fill", "none");

                svg.append("path")
                    .attr("d", area(dataset))
                    .attr("fill", "pink")
                    .attr("opacity", 0.2);

                svg.selectAll("circle")
                    .data(dataset)
                    .enter()
                    .append("circle")
                    .attr("cx", function(d){ return scaleX(d.date); })
                    .attr("cy", function(d){ return scaleY(d.value); })
                    .attr("r", "2");

                svg.append("g").selectAll("text")
                    .data(dataset)
                    .enter()
                    .append("text")
                    .attr({
                        "font-size" : 10,
                        "x" : function(d){ return scaleX(d.date); },
                        "y" : function(d){ return scaleY(d.value) + 10; }
                    })
                    .text(function(d){
                        return d.value;
                    });

                svg.append("g")
                    .attr("class", "axis")
                    .attr("transform", "translate(0," + (h - margin.y) + ")")
                    .call(axisX);

                svg.append("g")
                    .attr("class", "axis")
                    .attr("transform", "translate(" + margin.x + ",0)")
                    .call(axisY);

                svg.append("text")
                    .attr({
                        "font-size" : 15,
                        "text-anchor" : "start",
                        "x" : w/2,
                        "y" : 15})
                    .text(linetype);
            }
        </script>
    </body>
</html>

棒グラフ ordinal scale

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-11-Bar.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-11-Bar.html


<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Bar</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
			.axis path,
			.axis line {
				fill: none;
				stroke: black;
				shape-rendering: crispEdges;
			}

			.axis text {
				font-family: sans-serif;
				font-size: 8px;
			}
        </style>
    </head>
    <body>
        <script type="text/javascript">
            var w = 300;
            var h = 150;
            var margin = {x:50, y:20, title:15};

            // Browser Share (2012-05)
            var dataset = [
                {"browser":"IE","share":28.87},
                {"browser":"Chrome","share":29.15},
                {"browser":"Firefox","share":22.97},
                {"browser":"Safari","share":8.68},
                {"browser":"Opera","share":3.80},
                {"browser":"Android","share":2.13}
            ];

            var scaleX = d3.scale.ordinal()
                .domain(dataset.map(function(d){return d.browser;}))
                .rangeRoundBands([0,w],0.05);

            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .tickSize(0); // 棒グラフなので X 軸から、値ラベルまでの伸びるヒゲは無しにする

            // min value
            var minY = d3.min(dataset, function(d) {
                return d.share;
            });

            // max value
            var maxY = d3.max(dataset, function(d) {
                return d.share;
            });

            var scaleY = d3.scale.linear()
                .domain([minY, maxY])
                .nice()
                .rangeRound([margin.y, h - margin.y - margin.title])
                .clamp(true);

            var svg = d3.select("body").append("svg").attr({width: w, height: h});

            svg.append("rect").attr({x:0, y:0, width:w, height:h, stroke:"black", fill:"snow"});

            svg.append("g").selectAll("rect")
                .data(dataset)
                .enter()
                .append("rect")
                .attr({
                    "x" : function(d){ return scaleX(d.browser); },
                    "y" : function(d){ return h - margin.y - scaleY(d.share); },
                    "width" : scaleX.rangeBand(),
                    "height" : function(d){ return scaleY(d.share); },
                    "fill" : function(d){ return "rgb(64, 64, " + Math.floor(d.share * 255 / maxY) + ")";}
                });

            svg.append("g").selectAll("text")
                .data(dataset)
                .enter()
                .append("text")
                .text(function(d){ return d.share; })
                .attr({
                    "x" : function(d){ return scaleX(d.browser) + scaleX.rangeBand() / 2; },
                    "y" : function(d){ return h - margin.y - scaleY(d.share) + 14; },
                    "fill" : "white",
                    "text-anchor" : "middle"
                });

            svg.append("g")
                .attr("class", "axis")
                .attr("transform", "translate(0," + (h - margin.y) + ")")
                .call(axisX);

            svg.append("text")
                .attr({
                    "font-size" : 15,
                    "text-anchor" : "middle",
                    "x" : w/2,
                    "y" : 15})
                .text("Browser Share");
        </script>
    </body>
</html>

アニメーション(1) 値の変更

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-12-Bar_Animation.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-12-Bar_Animation.html


<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Bar</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
			.axis path,
			.axis line {
				fill: none;
				stroke: black;
				shape-rendering: crispEdges;
			}

			.axis text {
				font-family: sans-serif;
				font-size: 8px;
			}
        </style>
    </head>
    <body>
        <div id="chart"></div>
        <button id="2011-06">2011-06</button>
        <button id="2011-09">2011-09</button>
        <button id="2012-01">2012-01</button>
        <button id="2012-05">2012-05</button>
        <select id="ease">
            <option value="linear">linear</option>
            <option value="quad">quad</option>
            <option value="cubic-in-out" selected="">cubic</option>
            <option value="sin">sin</option>
            <option value="exp">exp</option>
            <option value="bounce">bounce</option>
        </select>
        <script type="text/javascript">
            var w = 300;
            var h = 300;
            var margin = {x:50, y:20, title:15};

            // Browser Share (2011-06 to 2012-05)
            var dataset = {
                "2012-05" : [
                    {"browser":"IE","share":28.87},
                    {"browser":"Chrome","share":29.15},
                    {"browser":"Firefox","share":22.97},
                    {"browser":"Safari","share":8.68},
                    {"browser":"Opera","share":3.80},
                    {"browser":"Android","share":2.13}
                ],
                "2012-01" : [
                    {"browser":"IE","share":34.27},
                    {"browser":"Chrome","share":25.08},
                    {"browser":"Firefox","share":23.24},
                    {"browser":"Safari","share":7.98},
                    {"browser":"Opera","share":3.84},
                    {"browser":"Android","share":1.71}
                ],
                "2011-09" : [
                    {"browser":"IE","share":38.85},
                    {"browser":"Chrome","share":22.02},
                    {"browser":"Firefox","share":24.98},
                    {"browser":"Safari","share":6.64},
                    {"browser":"Opera","share":3.06},
                    {"browser":"Android","share":1.34}
                ],
                "2011-06" : [
                    {"browser":"IE","share":40.73},
                    {"browser":"Chrome","share":19.30},
                    {"browser":"Firefox","share":26.49},
                    {"browser":"Safari","share":4.74},
                    {"browser":"Opera","share":1.63},
                    {"browser":"Android","share":1.28}
                ]
            }

            var scaleX = d3.scale.ordinal()
                .domain(dataset["2011-06"].map(function(d){return d.browser;}))
                .rangeRoundBands([0,w],0.05);

            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .tickSize(0); // 棒グラフなので X 軸から、値ラベルまでの伸びるヒゲは無しにする

            var minY = Number.MAX_VALUE;
            var maxY = Number.MIN_VALUE;

            for (key in dataset) {
                minY = Math.min( minY, d3.min(dataset[key], function(d) { return d.share; }));
                maxY = Math.max( maxY, d3.max(dataset[key], function(d) { return d.share; }));
            }

            var scaleY = d3.scale.linear()
                .domain([minY, maxY])
                .nice()
                .rangeRound([margin.y, h - margin.y - margin.title])
                .clamp(true);

            var svg = d3.select("#chart").append("svg").attr({width: w, height: h});

            svg.append("rect").attr({x:0, y:0, width:w, height:h, stroke:"black", fill:"snow"});

            var gBarRects = svg.append("g");
            gBarRects.selectAll("rect")
                .data(dataset["2011-06"])
                .enter()
                .append("rect")
                .attr({
                    "x" : function(d){ return scaleX(d.browser); },
                    "y" : function(d){ return h - margin.y - scaleY(d.share); },
                    "width" : scaleX.rangeBand(),
                    "height" : function(d){ return scaleY(d.share); },
                    "fill" : function(d){ return "rgb(64, 64, " + Math.floor(d.share * 255 / maxY) + ")";}
                });

            var gBarTexts = svg.append("g");
            gBarTexts.selectAll("text")
                .data(dataset["2011-06"])
                .enter()
                .append("text")
                .text(function(d){ return d.share; })
                .attr({
                    "x" : function(d){ return scaleX(d.browser) + scaleX.rangeBand() / 2; },
                    "y" : function(d){ return h - margin.y - scaleY(d.share) + 14; },
                    "fill" : "white",
                    "text-anchor" : "middle"
                });

            svg.append("g")
                .attr("class", "axis")
                .attr("transform", "translate(0," + (h - margin.y) + ")")
                .call(axisX);

            var txtTitle = svg.append("text");
            txtTitle
                .attr({
                    "font-size" : 15,
                    "text-anchor" : "middle",
                    "x" : w/2,
                    "y" : 15})
                .text("Browser Share 2011-06");

            d3.selectAll("button").on("click", function() {

                var term = this.id;
                gBarTexts.selectAll("text")
                    .data(dataset[term])
                    .text(function(d){ return d.share; })
                    .transition()
                    .duration(100)
                    .delay(function(d,i){ return i*100; })
                    .attr({
                        "y" : function(d){ return h - margin.y - scaleY(d.share) + 14; },
                    });

                gBarRects.selectAll("rect")
                    .data(dataset[term])
                    .transition()
                    .duration(1000)
                    .ease(document.getElementById("ease").value)
                    .delay(function(d,i){ return i*100; })
                    .attr({
                        "y" : function(d){ return h - margin.y - scaleY(d.share); },
                        "height" : function(d){ return scaleY(d.share); },
                        "fill" : function(d){ return "rgb(64, 64, " + Math.floor(d.share * 255 / maxY) + ")";}
                    });

                txtTitle
                    .transition()
                    .text("Browser Share " + term);
            });
        </script>
    </body>
</html>

アニメーション(2) 軸の変更

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-13-Axis_Animation.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-13-Axis_Animation.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Axis</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
            .axisX path,
            .axisX line {
                fill: none;
                stroke: gray;
                shape-rendering: crispEdges;
            }
            .axisX text {
                font-family: sans-serif;
                fill: gray;
                font-size: 9px;
            }

            .axisY path,
            .axisY line {
                fill: none;
                stroke: gray;
                shape-rendering: crispEdges;
            }
            .axisY text {
                font-family: sans-serif;
                fill: gray;
                font-size: 9px;
            }
        </style>
    </head>
    <body>
        <div id="chart"></div>
        <button value="rotate">Rotate</button>
        <button value="reverse">Reverse</button>
        <button value="out">Zoom Out</button>
        <button value="in">Zoom In</button>
        <script type="text/javascript">
            function fx(t) {
                return fr(t) * Math.cos(t);
            }
            function fy(t) {
                return fr(t) * Math.sin(t);
            }
            function fr(t) {
                return Math.exp(0.01*t);
            }
            function rad2rgb(rad) {
                var r,g,b;
                var deg = (rad * 180 / Math.PI) % 360;

                if (deg < 60) {
                    r = 255;
                    g = 255 * deg / 60;
                    b = 0;
                } else if (deg < 120) {
                    r = 255 - ( 255 * (deg - 60) / 60 );
                    g = 255;
                    b = 0;
                } else if (deg < 180) {
                    r = 0;
                    g = 255;
                    b = 255 * (deg -120) / 60;
                } else if (deg < 240) {
                    r = 0;
                    g = 255 - ( 255 * (deg - 180) / 60 );
                    b = 255;
                } else if (deg < 300) {
                    r = 255 * (deg -240) / 60;
                    g = 0;
                    b = 255;
                } else {
                    r = 255;
                    g = 0;
                    b = 255 - ( 255 * (deg - 300) / 60 );
                }
                return "rgba(" + Math.floor(r) + "," + Math.floor(g) + "," + Math.floor(b) + ",0.8)";
            }

            var w = 400;
            var h = 400;
            var margin = {x:40, y:40};

            var t = 0.0;
            var dataset = new Array();
            for (var p = 0; p < 255; p++) {
                dataset.push([fx(t), fy(t), t]);
                t += Math.PI * 0.13;
            }

            var minX = d3.min(dataset, function(d) {return d[0];});
            var maxX = d3.max(dataset, function(d) {return d[0];});

            var minY = d3.min(dataset, function(d) {return d[1];});
            var maxY = d3.max(dataset, function(d) {return d[1];});

            var scaleX = d3.scale.linear()
                .domain([minX, maxX])
                .rangeRound([margin.x, w - margin.x])
                .nice();

            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom");

            var scaleY = d3.scale.linear()
                .domain([minY, maxY])
                .rangeRound([h - margin.y, margin.y])
                .nice();

            var axisY = d3.svg.axis()
                .scale(scaleY)
                .orient("left");

            var svg = d3.select("#chart").append("svg").attr({width: w, height: h});

            svg.selectAll("circle")
                .data(dataset)
                .enter()
                .append("circle")
                .attr("cx", function(d){
                    return scaleX(d[0]);
                })
                .attr("cy", function(d){
                    return scaleY(d[1]);
                })
                .attr("fill", function(d){return rad2rgb(d[2]); })
                .attr("r", function(d){return scaleX(fr(d[2])) - scaleX(fr(d[2]-2*Math.PI)); });

            svg.append("g")
                .attr("class", "axisX")
                .attr("transform", "translate(0," + scaleY(0) + ")")
                .call(axisX);

            svg.append("g")
                .attr("class", "axisY")
                .attr("transform", "translate(" + scaleX(0) + ",0)")
                .call(axisY);

            var rotate = 0;
            d3.selectAll("button").on("click", function() {
                var btn = this.value;

                switch(btn) {
                case 'rotate' :
                    rotate = (rotate + 1) % 4;

                    svg.selectAll("circle")
                        .data(dataset)
                        .transition()
                        .ease("bounce")
                        .duration(2000)
                        .attr("cx", function(d){
                            return scaleX((rotate == 0 || rotate == 1) ? d[0] : -1 * d[0]);
                        })
                        .attr("cy", function(d){
                            return scaleY((rotate == 0 || rotate == 3) ? d[1] : -1 * d[1]);
                        });

                    break;
                case 'reverse' :
                    rotate = (rotate + 2) % 4;

                    svg.selectAll("circle")
                        .data(dataset)
                        .transition()
                        .delay(function(d,i){ return i; })
                        .ease("bounce")
                        .duration(2000)
                        .attr("cx", function(d){
                            return scaleX((rotate == 0 || rotate == 1) ? d[0] : -1 * d[0]);
                        })
                        .attr("cy", function(d){
                            return scaleY((rotate == 0 || rotate == 3) ? d[1] : -1 * d[1]);
                        });

                    break;

                case 'in' :
                    t -= Math.PI * 0.13 * 255 * 2;
                case 'out' :
                    for (var p = 0; p < 255; p++) {
                        dataset[p] = [fx(t), fy(t), t];
                        t += Math.PI * 0.13;
                    }


                    svg.selectAll("circle")
                        .data(dataset)
                        .transition()
                        .attr("cx", function(d){
                            return scaleX((rotate == 0 || rotate == 1) ? d[0] : -1 * d[0]);
                        })
                        .attr("cy", function(d){
                            return scaleY((rotate == 0 || rotate == 3) ? d[1] : -1 * d[1]);
                        });

		            minX = d3.min(dataset, function(d) {return d[0];});
		            maxX = d3.max(dataset, function(d) {return d[0];});

		            minY = d3.min(dataset, function(d) {return d[1];});
		            maxY = d3.max(dataset, function(d) {return d[1];});

                    scaleX.domain([minX,maxX]);
                    scaleY.domain([minY,maxY]);

                    svg.selectAll("circle")
                        .data(dataset)
                        .transition()
                        .delay(function(d,i){ return 500+i; })
                        .ease("bounce")
                        .duration(1000)
                        .attr("cx", function(d){
                            return scaleX((rotate == 0 || rotate == 1) ? d[0] : -1 * d[0]);
                        })
                        .attr("cy", function(d){
                            return scaleY((rotate == 0 || rotate == 3) ? d[1] : -1 * d[1]);
                        });

                    svg.select(".axisX")
				    	.transition()
				    	.delay(500)
				    	.duration(1000)
						.call(axisX);

                    svg.select(".axisY")
				    	.transition()
				    	.delay(500)
				    	.duration(1000)
						.call(axisY);

                    break;
                }

            });

        </script>
    </body>
</html>

アニメーション(3) 描画範囲内に描画する (+each())

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-14-Heart.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-14-Heart.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Heart</title>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <style type="text/css">
            .axisX path,
            .axisX line {
                fill: none;
                stroke: gray;
                shape-rendering: crispEdges;
            }
            .axisX text {
                font-family: sans-serif;
                fill: gray;
                font-size: 9px;
            }

            .axisY path,
            .axisY line {
                fill: none;
                stroke: gray;
                shape-rendering: crispEdges;
            }
            .axisY text {
                font-family: sans-serif;
                fill: gray;
                font-size: 9px;
            }
        </style>
    </head>
    <body>
        <div id="chart"></div>
        <button value="in" disabled>Zoom In</button>
        <button value="out">Zoom Out</button>
        <script type="text/javascript">
            function fx(t) {
                return Math.pow(Math.sin(t), 3);
            }
            function fy(t) {
                return 1.0 + 0.8125 * Math.cos(t) - 0.3125 * Math.cos(2 * t) - 0.125 * Math.cos(3*t) - 0.0625 * Math.cos(4*t);
            }

            var w = 300;
            var h = 300;
            var margin = {x:20, y:20};

            var dataset = new Array();
            for (var t = 0.0; t < 2*Math.PI; t+=0.1) {
                dataset.push([fx(t), fy(t)]);
            }

            var scaleX = d3.scale.linear()
                .domain([-0.2, 0.2])
                .rangeRound([margin.x, w - margin.x])
                .nice();

            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom");

            var scaleY = d3.scale.linear()
                .domain([-0.2, 0.2])
                .rangeRound([h - margin.y, margin.y])
                .nice();

            var axisY = d3.svg.axis()
                .scale(scaleY)
                .orient("left");

            var line = d3.svg.area()
                .x(function(d) { return scaleX(d[0]); })
                .y(function(d) { return scaleY(d[1]); })
                .interpolate("monotone");

            var svg = d3.select("#chart").append("svg").attr({width: w, height: h});

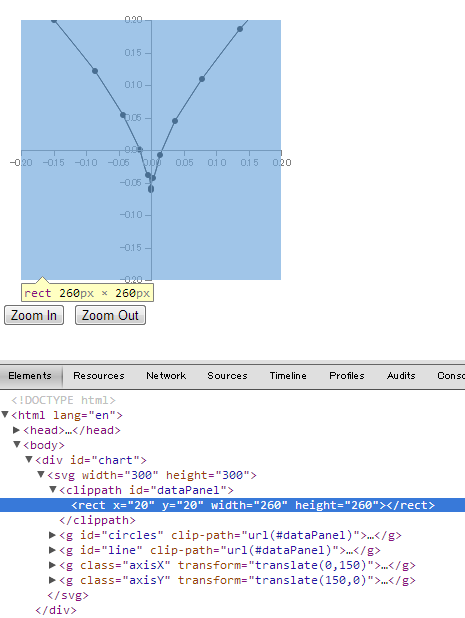

            var chartArea
                = svg.append("clipPath")
                    .attr("id", "dataPanel")
                    .append("rect")
                    .attr({
                        x: margin.x,
                        y: margin.y,
                        width: w - margin.x * 2,
                        height: h - margin.y * 2
                    });

            svg.append("g")
                .attr("id", "circles")
                .attr("clip-path", "url(#dataPanel)")
                .selectAll("circle")
                .data(dataset)
                .enter()
                .append("circle")
                .attr("cx", function(d){
                    return scaleX(d[0]);
                })
                .attr("cy", function(d){
                    return scaleY(d[1]);
                })
                .attr("fill", "black")
                .attr("r", 3);

            svg.append("g")
                .attr("id", "line")
                .attr("clip-path", "url(#dataPanel)")
                .append("path")
                .attr("d", line(dataset))
                .attr("stroke", "black");

            svg.append("g")
                .attr("class", "axisX")
                .attr("transform", "translate(0," + scaleY(0) + ")")
                .call(axisX);

            svg.append("g")
                .attr("class", "axisY")
                .attr("transform", "translate(" + scaleX(0) + ",0)")
                .call(axisY);

          d3.selectAll("button").on("click", function() {
                var btn = this.value;
                d3.selectAll("button").attr("disabled", null);
                switch(btn) {
                case 'in' :
                    scaleX.domain([-0.2,0.2]);
                    scaleY.domain([-0.2,0.2]);
                    break;
                case 'out' :
                    minX = d3.min(dataset, function(d) {return d[0];}) - 0.1;
                    maxX = d3.max(dataset, function(d) {return d[0];}) + 0.1;

                    minY = d3.min(dataset, function(d) {return d[1];});
                    maxY = d3.max(dataset, function(d) {return d[1];});

                    scaleX.domain([minX,maxX]).nice();
                    scaleY.domain([minY,maxY]).nice();
                    break;
                }

                var DULATION = 3000;
                svg.select("#circles").selectAll("circle")
                    .data(dataset)
                    .transition()
                    .duration(DULATION)
                    .ease("bounce")
                    .each("start", function(){
                        d3.select(this)
                            .attr("fill","red");
                    })
                    .each("end", function(){
                        d3.select(this)
                            .attr("fill","pink")
                    })
                    .attr("cx", function(d){
                        return scaleX(d[0]);
                    })
                    .attr("cy", function(d){
                        return scaleY(d[1]);
                    })
                    .attr("r", 0);

                svg.select("#line").selectAll("path")
                    .data(dataset)
                    .transition()
                    .duration(DULATION)
                    .ease("bounce")
                    .attr("d", line(dataset))
                    .attr("stroke", "pink")
                    .attr("stroke-width", 2);

                svg.select(".axisX")
                    .transition()
                    .duration(DULATION)
                    .ease("bounce")
                    .call(axisX)
                    .attr("transform", "translate(0," + scaleY(0) + ")");

                svg.select(".axisY")
                    .transition()
                    .duration(DULATION)
                    .ease("bounce")
                    .call(axisY);
            });
        </script>
    </body>
</html>

インタラクション (データの増減 + イベント処理)

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-15-Update.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-15-Update.html


<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Bar</title>
        <style type="text/css">
			.axis path,
			.axis line {
				fill: none;
				stroke: black;
				shape-rendering: crispEdges;
			}

			.axis text {
				font-family: sans-serif;
				font-size: 8px;
			}

			#tooltips {
    			position: absolute;
    			padding: 10px;
    			color: black;
    			font-size: 12px;
    			background: white;
    			border-radius: 10px;
    			border-style:solid;
    			border-width:2px;
    			border-color: red;
    			opacity: 0.8
			}

			#tooltips.hidden {
			    display: none;
            }
        </style>
    </head>
    <body>
        <div id="chart">
            <div id="tooltips" class="hidden">TOOLTIPS</div>
        </div>
        <button value="prev">Prev</button>
        <button value="next">Next</button>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <script type="text/javascript" src="N225.js" charset="utf-8"></script>
        <script type="text/javascript">
            var w = 700;
            var h = 150;
            var margin = {x:50, y:20, title:15};

            var minY = d3.min(N225, function(d) { return d.end; });
            var maxY = d3.max(N225, function(d) { return d.end; });

            // 表示するデータ

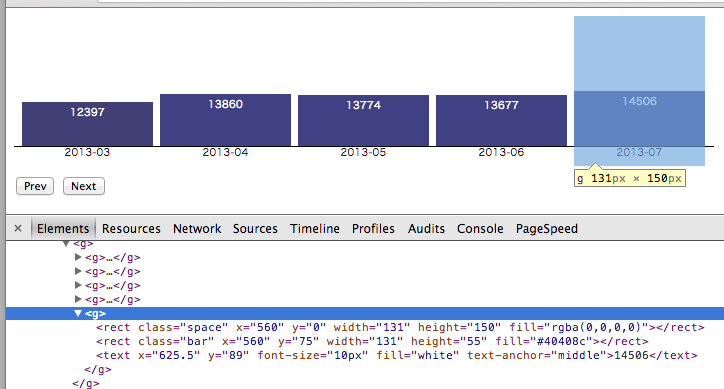

            var dataset = new Array();
            dataset.push(getData("2013-07"));

            // X軸
            var scaleX = d3.scale.ordinal()
                .domain(dataset.map(function(d){return d.date;}))
                .rangeRoundBands([0,w],0.05);

            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .tickSize(0);

            // Y軸
            var scaleY = d3.scale.linear()
                .domain([minY, maxY])
                .nice()
                .rangeRound([margin.y, h - margin.y - margin.title])
                .clamp(true);

            // グラフ描画領域
            var svg = d3.select("#chart").append("svg").attr({width: w, height: h});

            // データ描画領域
            var dataPane = svg.append("g");

            // 棒グラフの集合 (棒グラフ一つ分が <g> になる)
            dataPane.selectAll("g")
                .data(dataset)
                .enter()
                .append("g")
                .each(function(d,i){
                    addOrUpdateBar(
                        d3.select(this).append("rect"),
                        d3.select(this).append("rect"),
                        d3.select(this).append("text"),
                        d);
                })
                .on("mouseover", function(d,i){
                    showTooltips(d);
                    d3.select(this).select(".bar").transition().duration(500).attr("fill","orange");
                })
                .on("mouseout", function(d,i){
                    hideTooltips();
                    d3.select(this).select(".bar").transition().duration(500)
                        .attr("fill","rgb(64, 64, " + Math.floor(d.end * 255 / maxY) + ")");
                });

            // X軸を描画
            svg.append("g")
                .attr("class", "axis")
                .attr("transform", "translate(0," + (h - margin.y) + ")")
                .call(axisX);

            // ボタンをクリックしたときのイベント処理
            d3.selectAll("button").on("click", function() {

                var btnName = this.value;

                switch(this.value){
                case "prev" :
                    var newData = getPrev(dataset[0].date);
                    if (newData) {
                        dataset.unshift(newData);
                        while(dataset.length > 10) {
                            dataset.pop();
                        }
                    } else {
                        if(dataset.length > 1) {
                            dataset.pop();
                        }
                    }
                    break;
                case "next" :
                    var newData = getNext(dataset[dataset.length - 1].date);
                    if (newData) {
                        dataset.push(newData);
                        while(dataset.length > 10) {
                            dataset.shift();
                        }
                    } else {
                        if(dataset.length > 1) {
                            dataset.shift();
                        }
                    }
                    break;
                }

                scaleX
                    .domain(dataset.map(function(d){return d.date;}));

                scaleY
                    .domain([minY, maxY])
                    .rangeRound([margin.y, h - margin.y - margin.title]);

                var update = dataPane.selectAll("g").data(dataset);

                update
                    .each(function(d,i){
                    addOrUpdateBar(
                        d3.select(this).select(".space").transition(),
                        d3.select(this).select(".bar").transition().duration(500).ease("bounce"),
                        d3.select(this).select("text").transition().duration(500).ease("bounce"),
                        d);
                    });

                update.enter()
                    .append("g")
                    .each(function(d,i){
                        addOrUpdateBar(
                            d3.select(this).append("rect"),
                            d3.select(this).append("rect"),
                            d3.select(this).append("text"),
                            d);
                    })
                    .on("mouseover", function(d,i){
                        showTooltips(d);
                        d3.select(this).select(".bar").transition().duration(500).attr("fill","orange");
                    })
                    .on("mouseout", function(d,i){
                        hideTooltips();
                        d3.select(this).select(".bar").transition().duration(500)
                            .attr("fill","rgb(64, 64, " + Math.floor(d.end * 255 / maxY) + ")");
                    });

                update.exit()
                    .each(function(d,i){
                        d3.select(this).select("rect").transition().duration(500).ease("bounce").attr("x",w);
                        d3.select(this).select("text").transition().duration(500).ease("bounce").attr("x",w);
                    })
                    .remove();


                svg.select(".axis")
                    .transition()
                    .duration(500)
                    .ease("bounce")
                    .call(axisX)
                    .attr("transform", "translate(0," + (h - margin.y) + ")")
            });

            function addOrUpdateBar(spaceRect, barRect, text, d) {
                spaceRect.attr({
                        "class" : "space",
                        "x" : scaleX(d.date),
                        "y" : 0,
                        "width" : scaleX.rangeBand(),
                        "height" : h,
                        "fill" : "rgba(0,0,0,0)"
                    });

                barRect.attr({
                        "class" : "bar",
                        "x" : scaleX(d.date),
                        "y" : h - margin.y - scaleY(d.end),
                        "width" : scaleX.rangeBand(),
                        "height" : scaleY(d.end),
                        "fill" : "rgb(64, 64, " + Math.floor(d.end * 255 / maxY) + ")"
                    });

                text.text(Math.floor(d.end)).attr({
                        "x" : scaleX(d.date) + scaleX.rangeBand() / 2,
                        "y" : h - margin.y - scaleY(d.end) + 14,
                        "font-size" : "10px",
                        "fill" : "white",
                        "text-anchor" : "middle"
                    });
            }

            function showTooltips(d) {
                d3.select("#tooltips")
                    .style("left", (scaleX(d.date) + scaleX.rangeBand()) + "px")
                    .style("top", (margin.y) + "px")
                    .classed("hidden", false)
                    .html(d.date
                        + "<br/>始値" + Math.floor(d.start)
                        + "<br/>安値" + Math.floor(d.low)
                        + "<br/>高値" + Math.floor(d.high)
                        + "<br/>終値" + Math.floor(d.end));
            }

            function hideTooltips() {
                d3.select("#tooltips")
                    .classed("hidden", true);
            }
        </script>
    </body>
</html>

event, mouse

Your borwser is not supporting object tag. Please use one of the latest browsers.
Go to /D3JSExam/D3JS-16-Event.html

https://github.com/kagyuu/D3JSExam/blob/master/D3JS-16-Event.html

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <title>Bar</title>
        <style type="text/css">
            .axis path,
            .axis line {
                fill: none;
                stroke: black;
                shape-rendering: crispEdges;
            }

            .axis text {
                font-family: sans-serif;
                font-size: 8px;
            }

            #tooltips {
                position: absolute;
                padding: 10px;
                color: black;
                font-size: 12px;
                background: white;
                border-radius: 10px;
                border-style:solid;
                border-width:2px;
                border-color: red;
                opacity: 0.8
            }

            #tooltips.hidden {
                display: none;
            }
        </style>
    </head>
    <body>
        D3.js EVENT EXAMPLE
        <div id="tooltips" class="hidden">EVENT</div>
        <div id="chart" style="border:1px solid">
        </div>
        <script type="text/javascript" src="https://d3js.org/d3.v3.min.js" charset="utf-8"></script>
        <script type="text/javascript">
            var w = 300;
            var h = 150;
            var margin = {x:50, y:20, title:15};

            // 表示するデータ
            var dataset = [
                {fruits:"りんご", amount:"13"},
                {fruits:"みかん", amount:"4"},
                {fruits:"ぶどう", amount:"28"},
            ];

            // X軸
            var scaleX = d3.scale.ordinal()
                .domain(dataset.map(function(d){return d.fruits;}))
                .rangeRoundBands([0,w],0.05);

            var axisX = d3.svg.axis()
                .scale(scaleX)
                .orient("bottom")
                .tickSize(0);

            // Y軸
            var scaleY = d3.scale.linear()
                .domain([4, 28])
                .nice()
                .rangeRound([margin.y, h - margin.y - margin.title])
                .clamp(true);

            // グラフ描画領域
            var svg = d3.select("#chart").append("svg").attr({width: w, height: h});

            // データ描画領域
            var dataPane = svg.append("g");

            dataPane.selectAll("rect")
                .data(dataset)
                .enter()
                .append("rect")
                .attr("x"      , function(d){ return scaleX(d.fruits); })
                .attr("y"      , function(d){ return h - margin.y - scaleY(d.amount); })
                .attr("width"  , function(d){ return scaleX.rangeBand(); })
                .attr("height" , function(d){ return scaleY(d.amount); })
                .attr("fill"   , function(d){ return "りんご" === d.fruits ? "red" : "みかん" === d.fruits ? "orange" : "darkblue"; })
                .on("mousemove", function(d) {

                    // d3.event は現在のイベント
                    d3.event.stopPropagation()
                    d3.event.preventDefault()

                    var mXY = d3.mouse(document.body);
                    var mXY2 = d3.mouse(document.getElementById("chart"));

                    d3.select("#tooltips")
                        .style("left", (mXY[0] + 10) + "px")
                        .style("top", (mXY[1] + 10) + "px")
                        .classed("hidden", false)
                        .html(d.fruits + " " + d.amount + "<br/>"
                            + "body からの相対位置 = (" + mXY + ")<br/>"
                            + "div  からの相対位置 = (" + mXY2 + ")");
                })
                .on("mouseout", function(d) {
                    d3.select("#tooltips")
                        .classed("hidden", true);
                });

            // X軸を描画
            svg.append("g")
                .attr("class", "axis")
                .attr("transform", "translate(0," + (h - margin.y) + ")")
                .call(axisX);
        </script>
    </body>
</html>


HTML


添付ファイル: fileD3JS-16-Event.html 2232件 [詳細] fileinteraction.png 2111件 [詳細] fileD3JS-15-Update.html 2155件 [詳細] fileN225.js 2097件 [詳細] fileclippath.png 2036件 [詳細] fileD3JS-14-Heart.html 2280件 [詳細] fileD3JS-13-Axis_Animation.html 2279件 [詳細] fileD3JS-12-Bar_Animation.html 2278件 [詳細] fileD3JS-11-Bar.html 2475件 [詳細] fileD3JS-10-Area.html 2214件 [詳細] fileD3JS-9-Line.html 2179件 [詳細] fileD3JS-8-Axis.html 2156件 [詳細] fileD3JS-7-Scale3.html 2099件 [詳細] fileD3JS-6-Scale2.html 2229件 [詳細] fileD3JS-5-Scale.html 2197件 [詳細] fileD3JS-4-SVG2.html 2230件 [詳細] fileD3JS-3-SVG1.html 2249件 [詳細] filed3-1.png 1996件 [詳細] fileD3JS-2-SELECT.html 2235件 [詳細]

トップ   編集 凍結 差分 バックアップ 添付 複製 名前変更 リロード   新規 一覧 単語検索 最終更新   ヘルプ   最終更新のRSS   sitemap
Last-modified: 2016-07-08 (金) 00:21:54 (3075d)
Short-URL:
ISBN10
ISBN13
9784061426061
