MenuBar

vmnet
仮想ネットワークの設定を変えたいとき
Solaris 10 / Open Solaris が、インストール中にハングアップするんだけど・・・
Guest( Windows )からは Host( Mac ) も LAN ( Internet )も見えるけど、Host( Mac )から Guest( Windows )が見えないとき

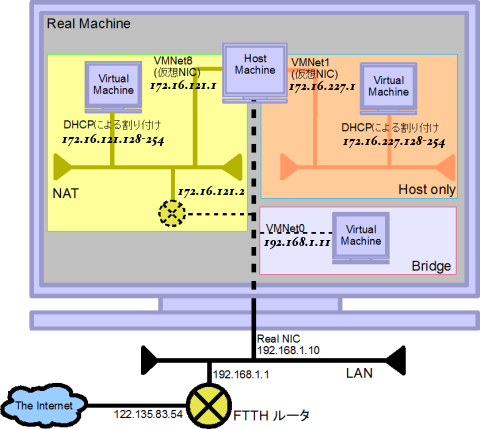

vmnet †

vmnet0 (Bridge)
- VM(Virtual Machine) は、LANに直につながる
vmnet1 (Host Only)
- VMWare 内に閉じたネットワーク
  HOST 172.16.227.1
  DHCPでVMに割り振られるアドレス 172.16.227.128-254
- LANには出られない
vment8 (NAT)
- LAN への仮想 GW があるネットワーク
  HOST 172.16.121.1
  仮想Router 172.16.121.2
  仮想DNS Server 172.16.121.2
  仮想Net BIOS(Windows) Server 172.16.121.2
  DHCPでVMに割り振られるアドレス 172.16.121.128-254
- LANに出られる
- Port Forward で、外部からアクセスできるようにもできる

↑

仮想ネットワークの設定を変えたいとき †

現在のところ(VMWare Fusion 3)設定するGUIもついていないので、必要があれば設定ファイルを直接編集する必要がある
- VMNet1 と VMNet8 のネットワークアドレスはインストール時に適当に決められるっぽい
- 編集には root 権限が必要 → sudo vi とかを使う
- 書き込み権限がない場合がある → sudo chmod 644 とかを使う
- IPアドレスの一括置換には、vi で :%s/172.16.121/172.16.143/g とかを使う
- なんか "DO NOT MODIFY" とか書いてあるけど気にしない (本来なら vmware-config-net.pl で自動生成すべき物だが・・・うまくできない)

仮想マシンを全て止める

VMWare自体を止める

[/Library/Application Support/VMware Fusion]$ sudo ./boot.sh --stop

ネットワーク設定

[/Library/Application Support/VMware Fusion]$ cat networking
VERSION=1,0
answer VNET_1_DHCP yes
answer VNET_1_DHCP_CFG_HASH E0FF8DB8C695EF9D12D724DC4EAD78701C0F326E
answer VNET_1_HOSTONLY_NETMASK 255.255.255.0
answer VNET_1_HOSTONLY_SUBNET 172.16.227.0
answer VNET_1_VIRTUAL_ADAPTER yes
answer VNET_1_VIRTUAL_ADAPTER_ADDR 172.16.227.1
answer VNET_8_DHCP yes
answer VNET_8_DHCP_CFG_HASH AE55563383201D8299A032A87B046ED6DC77B5CA
answer VNET_8_HOSTONLY_NETMASK 255.255.255.0
answer VNET_8_HOSTONLY_SUBNET 172.16.121.0
answer VNET_8_NAT yes
answer VNET_8_VIRTUAL_ADAPTER yes
answer VNET_8_VIRTUAL_ADAPTER_ADDR 172.16.121.1

[/Library/Application Support/VMware Fusion]$ cat locations
answer LIBDIR /Library/Application Support/VMware Fusion
answer NETWORKING yes
answer VNET_8_NAT yes
answer VNET_8_HOSTONLY_HOSTADDR 172.16.121.1
answer VNET_8_HOSTONLY_NETMASK 255.255.255.0
file /Library/Application Support/VMware Fusion/vmnet8/dhcpd.conf 1262197172
file /var/db/vmware/vmnet-dhcpd-vmnet8.leases
file /var/db/vmware/vmnet-dhcpd-vmnet8.leases~
file /Library/Application Support/VMware Fusion/vmnet8/nat.conf 1262197172
answer VNET_1_HOSTONLY_HOSTADDR 172.16.227.1
answer VNET_1_HOSTONLY_NETMASK 255.255.255.0
answer VNET_1_HOSTONLY_SUBNET 172.16.227.0
answer VNET_1_DHCP yes
file /Library/Application Support/VMware Fusion/vmnet1/dhcpd.conf 1262197192
file /var/db/vmware/vmnet-dhcpd-vmnet1.leases
file /var/db/vmware/vmnet-dhcpd-vmnet1.leases~
file /Library/Application Support/VMware Fusion/config 1262197192

VMNet1の設定

[/Library/Application Support/VMware Fusion/vmnet1]$ cat dhcpd.conf
# Configuration file for ISC 2.0 vmnet-dhcpd operating on vmnet1.
#
# This file was automatically generated by the VMware configuration program.
# See Instructions below if you want to modify it.
#
# We set domain-name-servers to make some DHCP clients happy
# (dhclient as configured in SuSE, TurboLinux, etc.).
# We also supply a domain name to make pump (Red Hat 6.x) happy.
#


###### VMNET DHCP Configuration. Start of "DO NOT MODIFY SECTION" #####
# Modification Instructions: This section of the configuration file contains
# information generated by the configuration program. Do not modify this
# section.
# You are free to modify everything else. Also, this section must start
# on a new line
# This file will get backed up with a different name in the same directory
# if this section is edited and you try to configure DHCP again.

# Written at: 10/29/2009 23:40:33
allow unknown-clients;
default-lease-time 1800;                # default is 30 minutes
max-lease-time 7200;                    # default is 2 hours

subnet 172.16.227.0 netmask 255.255.255.0 {
        range 172.16.227.128 172.16.227.254;
        option broadcast-address 172.16.227.255;
        option domain-name-servers 172.16.227.1;
        option domain-name localdomain;
        default-lease-time 1800;                # default is 30 minutes
        max-lease-time 7200;                    # default is 2 hours
}
host vmnet1 {
        hardware ethernet 00:50:56:C0:00:01;
        fixed-address 172.16.227.1;
        option domain-name-servers 0.0.0.0;
        option domain-name "";
}
####### VMNET DHCP Configuration. End of "DO NOT MODIFY SECTION" #######

VMNet8の設定

[/Library/Application Support/VMware Fusion/vmnet8]$ cat dhcpd.conf
# Configuration file for ISC 2.0 vmnet-dhcpd operating on vmnet8.
#
# This file was automatically generated by the VMware configuration program.
# See Instructions below if you want to modify it.
#
# We set domain-name-servers to make some DHCP clients happy
# (dhclient as configured in SuSE, TurboLinux, etc.).
# We also supply a domain name to make pump (Red Hat 6.x) happy.
#


###### VMNET DHCP Configuration. Start of "DO NOT MODIFY SECTION" #####
# Modification Instructions: This section of the configuration file contains
# information generated by the configuration program. Do not modify this
# section.
# You are free to modify everything else. Also, this section must start
# on a new line
# This file will get backed up with a different name in the same directory
# if this section is edited and you try to configure DHCP again.

# Written at: 10/29/2009 23:40:33
allow unknown-clients;
default-lease-time 1800;                # default is 30 minutes
max-lease-time 7200;                    # default is 2 hours

subnet 172.16.121.0 netmask 255.255.255.0 {
        range 172.16.121.128 172.16.121.254;
        option broadcast-address 172.16.121.255;
        option domain-name-servers 172.16.121.2;
        option domain-name localdomain;
        default-lease-time 1800;                # default is 30 minutes
        max-lease-time 7200;                    # default is 2 hours
        option routers 172.16.121.2;
}
host vmnet8 {
        hardware ethernet 00:50:56:C0:00:08;
        fixed-address 172.16.121.1;
        option domain-name-servers 0.0.0.0;
        option domain-name "";
        option routers 0.0.0.0;
}
####### VMNET DHCP Configuration. End of "DO NOT MODIFY SECTION" #######

[/Library/Application Support/VMware Fusion/vmnet8]$ cat nat.conf
# Linux NAT configuration file
[host]
# NAT gateway address
ip = 172.16.121.2
netmask = 255.255.255.0
# VMnet device if not specified on command line
device = /dev/vmnet8
# Allow PORT/EPRT FTP commands (they need incoming TCP stream ...)
activeFTP = 1
# Allows the source to have any OUI.  Turn this one if you change the OUI
# in the MAC address of your virtual machines.
allowAnyOUI = 1
[udp]
# Timeout in seconds, 0 = no timeout, default = 60; real value might
# be up to 100% longer
timeout = 60
[incomingudp]

[incomingtcp]

VMWareの起動(設定に矛盾があるとココで怒られるので、よくメッセージを見ること)
```
[/Library/Application Support/VMware Fusion]$ sudo ./boot.sh --start
```

↑

Solaris 10 / Open Solaris が、インストール中にハングアップするんだけど・・・ †

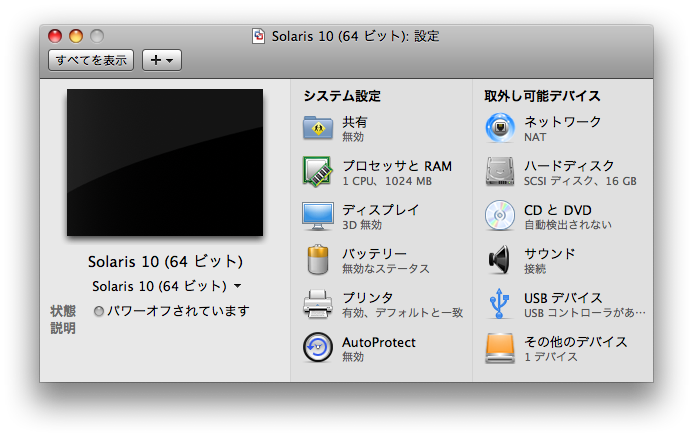

メモリを 1GB 以上にするといいらしい

↑

Guest( Windows )からは Host( Mac ) も LAN ( Internet )も見えるけど、Host( Mac )から Guest( Windows )が見えないとき †

Firewallソフトが遮断しているのでは？McAfee?とか・・・
Firewall機能を一時無効にして上手くいくようなら、VMNet8を信頼済みネットワークに設定する
