失敗 Glassfish V3 では OpenAM Agent はうまく動かない
以下失敗の記録

Agent の設定
J2EE Agent の設定
Glassfish v3 は、そのままでは動かないっぽい
うーんそれでもまだ Class Not Found がでる → あきらめた

Agent の設定 †

(略)
アクセス制御 → レルム"/" → エージェント → J2EE で、glassfishAgent を作成

↑

J2EE Agent の設定 †

http://forgerock.org/openam.html から Glassfish V2/V3 用の Agent をダウンロード

適当なところに展開

# cd /opt/
# unzip /home/kagyuu/ダウンロード/appserver_v10_agent_303.zip
# ls
glassfish3  j2ee_agents  tomcat7

パスワードファイルの作成

# cd j2ee_agents/appserver_v10_agent/
# echo gspasswd > .passwd
# chmod 400 .passwd

J2EE Agent のインストール

# cd j2ee_agents/appserver_v10_agent/bin/
# ./agentadmin --install

************************************************************************
Welcome to the OpenSSO Policy Agent 3.0 for Sun Java System Application
Server 8.1/8.2/9.0/9.1/10.
************************************************************************

(中略)

-----------------------------------------------
SUMMARY OF YOUR RESPONSES
-----------------------------------------------
Application Server Config Directory :
/opt/glassfish3/glassfish/domains/domain1/config
Application Server Instance name : server
OpenSSO server URL : http://pine.hondou.homedns.org:9080/opensso
Agent URL : http://pine.hondou.homedns.org:8080/agentapp
Agent Profile name : glassfishAgent
Agent Profile Password file name :
/opt/j2ee_agents/appserver_v10_agent/.passwd

(中略)

Thank you for using OpenSSO Policy Agent 3.0.

はまったところ : Agent に IP アドレスを使えません

Enter the Agent URL. Please include the deployment URI also as shown below:
(http://agent1.sample.com:1234/agentapp)
[ ? : Help, < : Back, ! : Exit ]
Agent URL: http://172.16.26.1:8080/agentapp


ERROR: The agent URL format is incorrect or its deployment URI is not
specified or the agent container is still running. Please enter the correct
agent URL with the correct deployment URI and make sure the agent container is
not running.
The agent container at http://172.16.26.1:8080 is running. This may cause
misconfiguration of the agent. Please stop the agent container, then
continue with the agent installation.



Enter the Agent URL. Please include the deployment URI also as shown below:
(http://agent1.sample.com:1234/agentapp)
[ ? : Help, < : Back, ! : Exit ]
Agent URL:

↑

Glassfish v3 は、そのままでは動かないっぽい †

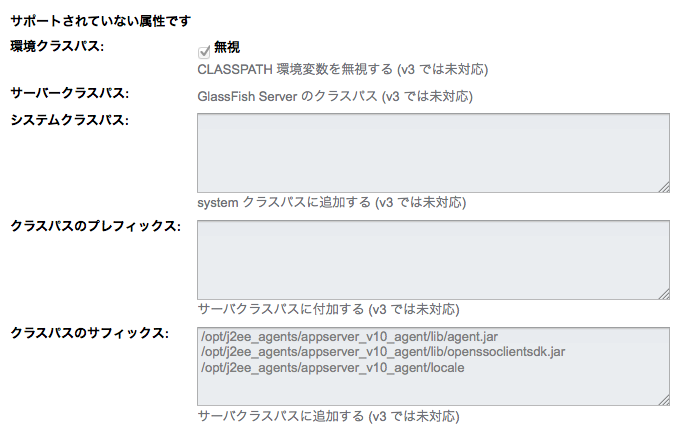

インストーラーの設定した Classpath が無視される (↓は、Glassfish V3 の管理コンソール)

ライブラリを Glassfish の domain にコピーする

# cd /opt/j2ee_agents/appserver_v10_agent/
# cp lib/agent.jar /opt/glassfish3/glassfish/domains/domain1/lib/applibs/
# cp lib/openssoclientsdk.jar /opt/glassfish3/glassfish/domains/domain1/lib/applibs/
# cp locale/* /opt/glassfish3/glassfish/domains/domain1/lib/classes/

$ pwd
/opt/glassfish3/glassfish/domains/domain1/lib
$ tree
.
|-- applibs
|   |-- agent.jar
|   `-- openssoclientsdk.jar
|-- classes
|   |-- CompositeAdviceForm.txt
|   |-- FormLoginContent.txt
|   |-- PortCheckContent.txt
|   |-- WSAuthErrorContent.txt
|   |-- WSInternalErrorContent.txt
|   |-- amAgentCore.properties
|   |-- amAgentLog.properties
|   |-- amFilter.properties
|   |-- amRealm.properties
|   |-- amToolsMessages.properties
|   |-- amWebPolicy.properties
|   |-- as81Tools.properties
|   `-- asTools.properties
|-- databases
`-- ext

↑

うーんそれでもまだ Class Not Found がでる → あきらめた †

Class Not Found : com.sun.identity.agents.appserver.v81.AmASRealm

なんでだろ～？

Tomcat 6 か、Glassfish V2 でないとだめっぽい
